The Fisher DVC2000 digital valve controller (smart positioner) is a workhorse of Emerson's Fisher brand, built as a modular unit for easy disassembly and maintenance. Starting from the hardware structure, this article explains the working principle and closed-loop feedback, then walks through complete field commissioning — travel calibration, tuning and key parameter configuration — plus three high-frequency faults with causes and remedies. It complements our earlier DVC2000 quick-setup article.

1. Hardware Structure

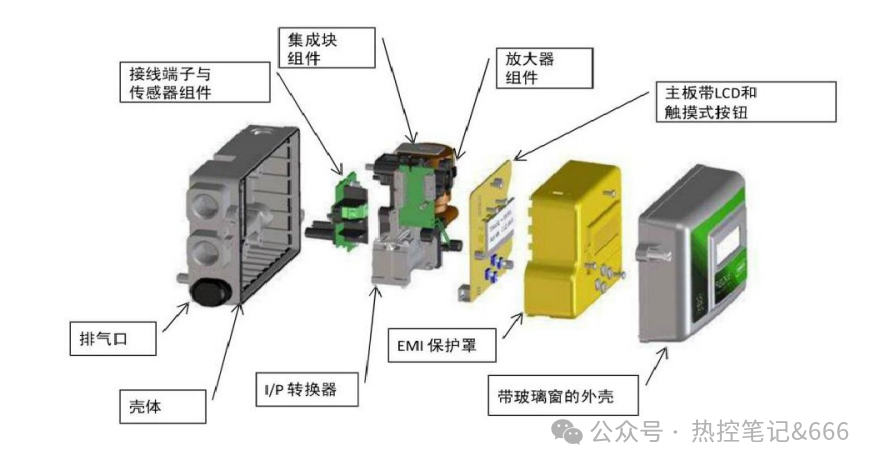

The DVC2000 mainly consists of:

• Housing and exhaust port: equipment enclosure and pneumatic exhaust path
• Wiring terminals and sensor module: 4–20 mA signal wiring, position signal acquisition

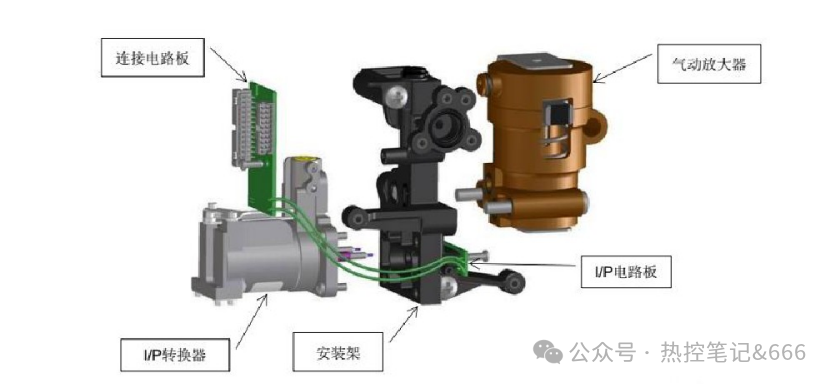

• I/P converter: converts the electrical signal into a pneumatic pressure signal — the core electro-pneumatic unit

• Manifold and pneumatic amplifier assemblies: amplify the air signal to drive the actuator
• EMI shield: protection against electromagnetic interference
• Main board with LCD and touch keys: local menu operation, live display of travel, input mA and output pressure

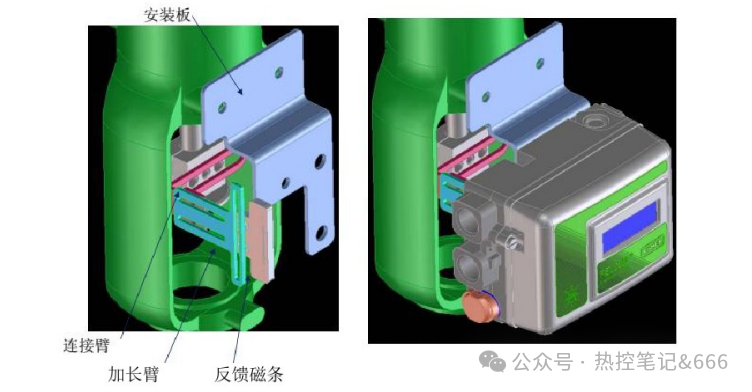

• Non-contact feedback magnet-strip assembly: captures valve travel without contact — no mechanical wear, longer life

💡 Key point: the DVC2000 uses non-contact magnet-strip feedback instead of a mechanical linkage. Ensure the strip and sensor board are correctly aligned at installation; a loose mounting directly causes inaccurate position feedback.

2. Working Principle

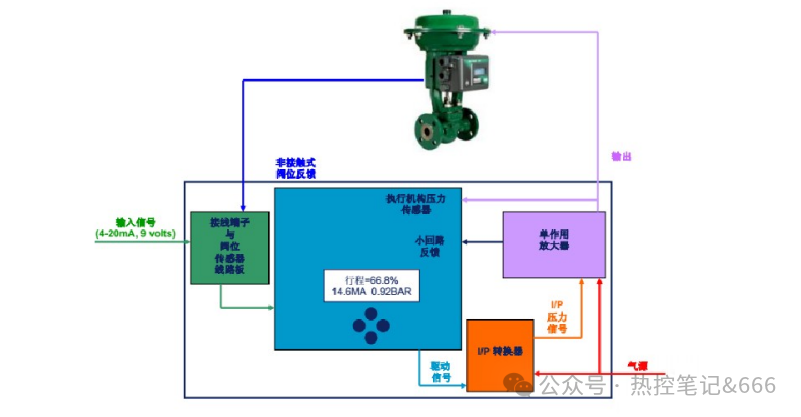

The DVC2000 receives the 4–20 mA control signal from the control system; the internal I/P converter turns it into a pneumatic pressure signal, the pneumatic amplifier boosts the supply air, and the output drives the control valve actuator.

The built-in position sensor continuously reads the actual valve travel, forming an inner closed-loop feedback; the actuator casing pressure is measured as well.

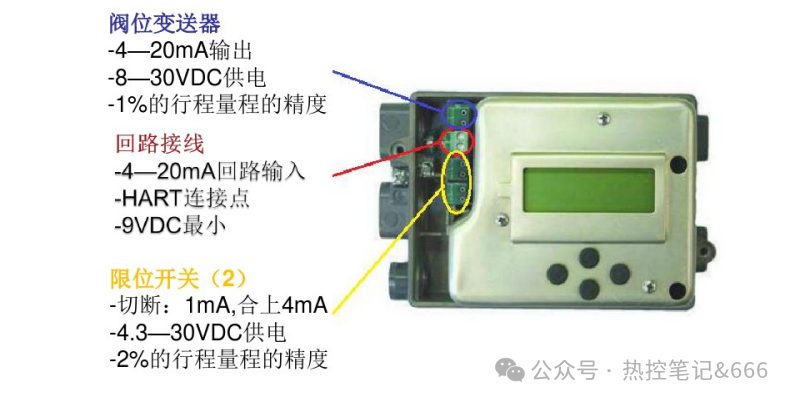

• Output: 4–20 mA position feedback signal
• Communication: HART protocol for remote parameter reading and diagnostics
• Power: loop-powered, 9 VDC minimum; position transmitter output supplied at 8–30 VDC; positioning accuracy up to 1% of travel

Key Parameter Settings

Language selection: press all four arrow keys together for 3 seconds, then use the up/down keys to choose from seven languages, and confirm with a right-key press.

Valve action (air-to-open / air-to-close) setting:

• Air-to-open (FC): find "zero control signal", select "valve closes" and confirm; then find "position transmitter output 4 mA", select "valve closes" and confirm
• Air-to-close (FO): find "zero control signal", select "valve opens" and confirm; then find "position transmitter output 4 mA", select "valve opens" and confirm

3. Complete Field Commissioning

Prerequisites: valve free of mechanical sticking, air supply pressure normal, wiring correct.

3.1 Automatic travel calibration

Purpose: let the positioner learn the valve's actual 0% (closed), 50% (mid) and 100% (open) positions.

• In the main menu press ↓ to find [Travel Calibration], confirm with the right key
• Select [Auto] with the up/down keys, confirm with the right key
• When the LCD prompts "hold right key 3 s, valve will move", long-press the right key
• The positioner automatically strokes the valve through 0%, 100% and 50%

⚠️ During calibration all keys are disabled — do not interrupt; wait for the automatic sequence to finish, then confirm and save with the right key.

3.2 Tuning (gain C–M)

Gain codes: C slowest → M fastest; "L" is the usual field default. The goal is accurate valve response without oscillation.

• Find [Tuning] in the menu, confirm with the right key
• Prefer [Auto]: confirm, long-press the right key 3 s, and the device auto-tunes
• If the valve oscillates after auto tuning: switch to [Manual] tuning
• Lower the gain code step by step until the valve moves smoothly without oscillation

3.3 Key Parameter Reference

Most parameters are factory-preset; only the key items need adapting to the valve:

3.4 Local Control

The valve can be driven manually from the positioner panel for maintenance:

• On the main screen press ↓ seven times, then → once, to enter local control
• ANALOG: the positioner follows the remote 4–20 mA command from the DCS
• MANUAL: local mode — set the valve travel directly with the up/down keys

After maintenance, always switch back to Analog mode to restore remote control.

4. Common Faults, Causes and Remedies

Fault 1: valve does not move at all on remote signal

• Valve sticking: have mechanical maintenance free the valve
• Command wiring detached or loose: check the 4–20 mA loop and repair
• Air supply fault, piping leak: check supply pressure and fix the leak
• Positioner failure: check the LCD for parameter display; if blank or error and power checks out, replace the positioner

Fault 2: large deviation between DCS command and position feedback

• Loose feedback magnet-strip assembly (most common): the feedback bracket has shifted — tighten the feedback mechanism and re-run travel calibration
• Valve mechanical sticking: excessive mechanical resistance — have the valve serviced

Fault 3: sluggish valve, slow stroking

• Internal moving parts of the positioner sticking, abnormal feedback force
• Positioner output tubing or supply line leaking
• Actuator cylinder diaphragm leaking — cylinder fault, needs overhaul

💡 Tip: if parameters are accidentally changed, the positioner keeps the most recent configuration and can restore it — no need to start commissioning from scratch.

Field Commissioning Takeaways

• Order of work: confirm the valve is free of sticking → air supply normal, wiring correct → automatic travel calibration → tuning to remove oscillation → valve action and flow characteristic parameters
• The DVC2000 feedback is a non-contact magnet strip — never bend it at will; a shifted mounting directly causes wrong position feedback
• Do not chase fast response with high gain; prioritize oscillation-free operation — lower the gain first when it oscillates
• For air-to-open/air-to-close valves, watch the zero-control-signal and feedback-output polarity settings to avoid reversed feedback
• After commissioning, return local control to Analog remote mode, otherwise the DCS cannot control the valve
