The JPS series quarter-turn electric actuators from Juxi Mechanical & Electrical (SJMC) span ten torque steps from 100 to 3,000 N·m (JPS100/160/240/350/500/800/1100/1500/2000/3000), plus the JPSL linear series (4–25 kN). Double worm-gear self-locking drive, IP67 enclosure (IP68 submersible to 10 m optional), LCD menu (Chinese/English) with infrared remote, and a PCU smart control card with one-touch auto-calibration — on-off, modulating and flame-proof versions (Exd II BT4/BT6/CT4/CT6) are all available, mounting directly to valves per ISO 5211. Full specifications, ordering code, options and valve-matching tables below.

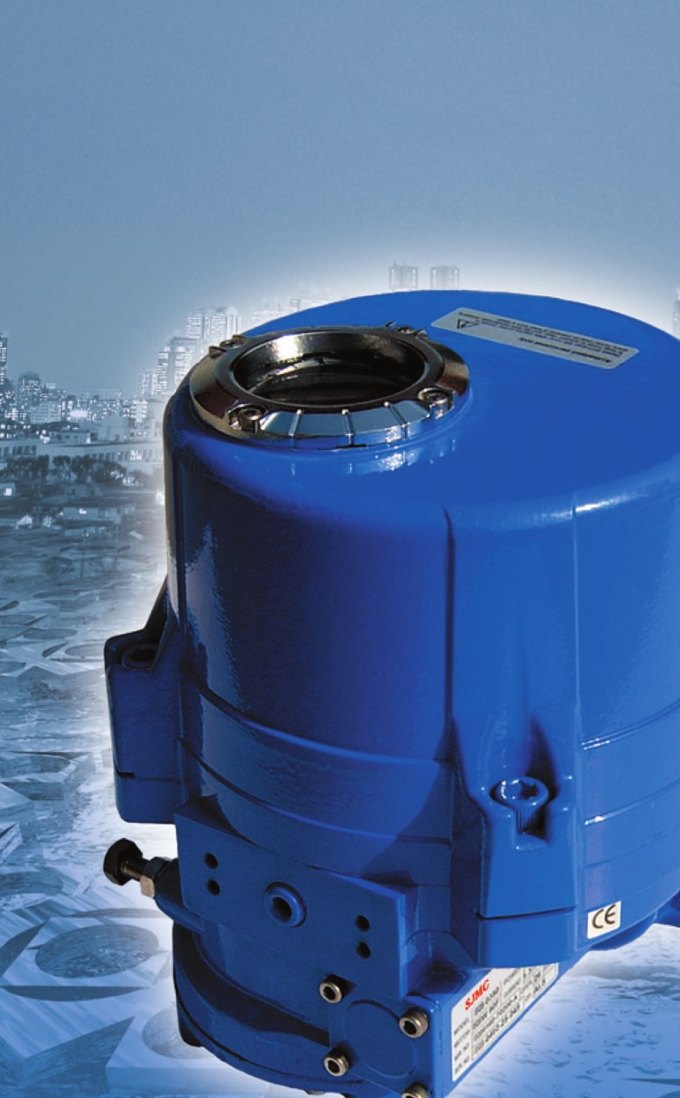

JPS series quarter-turn actuator (blue LCD type, from the product brochure)
Hard-anodized aluminium housing with epoxy powder coating and double O-ring seals; totally enclosed squirrel-cage motor (class F); double worm-gear transmission — output self-locking, no brake required; handwheel with clutch for manual operation and externally adjustable mechanical stops; the proportioning control section is separable from the drive so commissioning never stops production; valve position sensed by potentiometer, with the PCU smart card outputting 4–20 mA on modulating versions. The control panel is an LCD menu (Chinese/English) with infrared remote, or DIP-switch configuration; loss-of-power action selectable FAIL CLOSE / OPEN / STOP.
| Item | JPS100 | JPS160 | JPS240 | JPS350 | JPS500 | JPS800 | JPS1100 | JPS1500 | JPS2000 | JPS3000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output torque N·m | 100 | 160 | 240 | 350 | 500 | 800 | 1100 | 1500 | 2000 | 3000 |
| 90° travel (50 Hz, s) | 21 | 26 | 26 | 31 | 31 | 39 | 39 | 93 | 117 | 117 |
| Motor power W | 15 | 40 | 40 | 40 | 90 | 180 | 180 | 90 | 180 | 180 |
| ISO 5211 flange | F07 | F07/F10 | F10/F12 | F10/F12 | F12/F14 | F12/F14 | F12/F14 | F16 | F16 | F16 |
| Max stem Øround/□ mm | 22/20 | 25/23 | 25/23 | 40/34 | 40/34 | 48/40 | 48/40 | 75/64 | 75/64 | 75/64 |
| Weight kg | 7 | 15 | 15 | 20 | 20 | 25 | 25 | 65 | 75 | 75 |
| Handwheel turns | 10 | 12 | 12 | 14 | 14 | 17 | 17 | 65 | 70 | 70 |
Common parameters: IP67 (NEMA 4&4X; optional IP68, 10 m / 100 h submersion); power 110/220 V 1-phase, 380/440 V 3-phase, 50/60 Hz ±10%; duty S2 (on-off) / S4 30–50% (300–1200 starts/h, modulating); two limit switches per direction + one torque switch per direction (SPDT 250 V AC 10 A); motor thermal protection and anti-condensation heater 5 W; travel 90°±5°; ambient −20 to +70 °C (optional −40 to +100 °C); vibration 10 g XYZ.
Ordering code JPS-□ (9 digits): torque step (100–3000) + power (24 VDC / 220 VAC / 380 VAC / other) + control (on-off / modulating / other) + protection (IP67 / IP68) + flame-proof (none / Exd B / intrinsically safe C / fail-safe FS) + switching time + extras (lever-ball-joint / local control unit / LCD / infrared / fieldbus) + customer code.
| Code | Option |
|---|---|
| EX | Flame-proof Exd II BT4/BT6/CT4/CT6 |
| WT | IP68, operable 100 h submerged at 10 m |
| ALS/ATS | Auxiliary limit/torque switches, up to 4 each |
| PK / CT | Potentiometer 0–1 kΩ / 4–20 mA position feedback |
| PCU | Smart control card, 4–20 mA in/out, one-touch auto-calibration |
| LCU / LCD | Local control unit / LCD display window |
| LPA | Lever-plate mounting (lever + bracket + ball joint) for dampers |
| FS | Fail-safe return |
| JPS | Butterfly 10K (150#) | Butterfly 20K (300#) | 2-way ball 10K | 2-way ball 20K |
|---|---|---|---|---|
| 100 | 100A | 80A | 50A | 40A |
| 160 | 125A | 100A | 65/80A | 50A |
| 240 | 150A | 125A | 65/80A | 65/80A |
| 350 | 200A | 150A | 100A | — |
| 500 | 300A | — | 150A | — |
| 800 | 350A | 250A | 125A | 125A |
| 1100 | 400A | 300A | 200A | 150A |
| 1500 | 450A | 350A | — | — |
| 2000 | 500A | 400A | 250A | 200A |
| 3000 | 600A | 450/500A | 300/350A | 250/300A |
Sizing rule: keep a 30% torque margin over the valve requirement, then read the table; for high/low temperature, seawater, strong corrosion or high vibration consult the factory first. For linear duty choose JPSL04–25 (thrust 4–25 kN, stroke 40–100 mm).
