Changzhou SND Intelligent Electric Actuators: The SND-Z, SND-Q, SND-DQ and STZ Families

source： date：2026-09-28

Changzhou Shinaituoke (SND) Power Station Measurement & Control Technology Co., Ltd. (Changzhou, Jiangsu) specializes in electric actuators for power-station auxiliaries, offering intelligent, standard and compact electric actuators/devices with matching control cabinets. Note: SND (Shinaituoke) is a local Changzhou brand unrelated to Schneider Electric of France. This article covers the intelligent families; standard and compact types follow in this column.

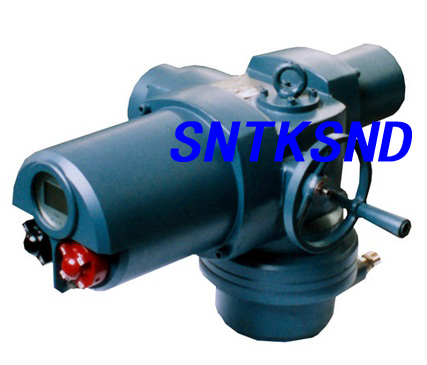

SND intelligent multi-turn electric actuator

SND intelligent multi-turn actuator (image source: SND official website)

SND-Z Series: Intelligent Multi-Turn (On/Off)

For globe valves, gate valves, throttle valves and sluice gates.

Size range: SND-Z5 / Z10 / Z15 / Z20 / Z30 / Z40 / Z45 / Z60 / Z90 / Z120 / Z180 / Z250 / Z350 / Z500 / Z800 / Z1000 / Z1400 / Z1600 / Z1800 / Z2000 (torque steps; up to Z2000). An explosion-proof SND-Z series (suffix /BS, e.g. SND-Z5-18/BS) and an SND3-Z series are also available.

SND-ZTD Series: Intelligent Multi-Turn (Modulating)

The modulating type on the same platform: SND-ZTD5 / ZTD8 / ZTD10 / ZTD15 / ZTD20 / ZTD30 / ZTD40 / ZTD45 / ZTD60 / ZTD90 / ZTD120 / ZTD180 / ZTD250 / ZTD350 / ZTD500 / ZTD800 / ZTD1000.

SND-Q Series: Intelligent Quarter-Turn (On/Off) / SND-QTJ (Modulating)

For butterfly valves, ball valves and dampers:

On/off: SND-Q12.5 / Q25 / Q40 / Q50 / Q100 / Q150 / Q200 / Q300 / Q400
Modulating: SND-QTJ12.5 / QTJ25 / QTJ50 / QTJ100 / QTJ200 / QTJ300

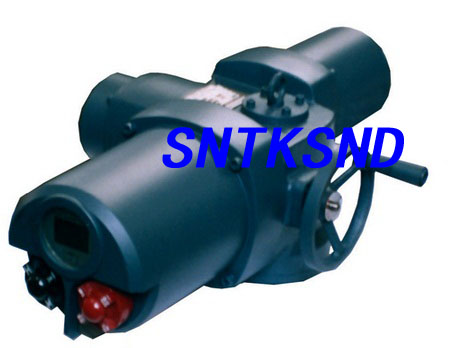

SND intelligent quarter-turn actuator

SND intelligent quarter-turn actuator (image source: SND official website)

SND-DQ Series: High-Torque Quarter-Turn (On/Off SND-DQ / Modulating SND-DQTJ)

Supplied also as SND-Z base plus gearbox stacks (e.g. SND-Z20-18+DQ200):

On/off: SND-DQ200 / DQ400 / DQ600 / DQ800 / DQ1000 / DQ1600 / DQ2000 / DQ3200 / DQ4000 / DQ6300 / DQ8000 / DQ12500 / DQ16500 / DQ25000 / DQ40000
Modulating: SND-DQTJ100 / DQTJ200 / DQTJ400 / DQTJ600 / DQTJ800 / DQTJ1000 / DQTJ2000 / DQTJ4000 / DQTJ6300 / DQTJ8000

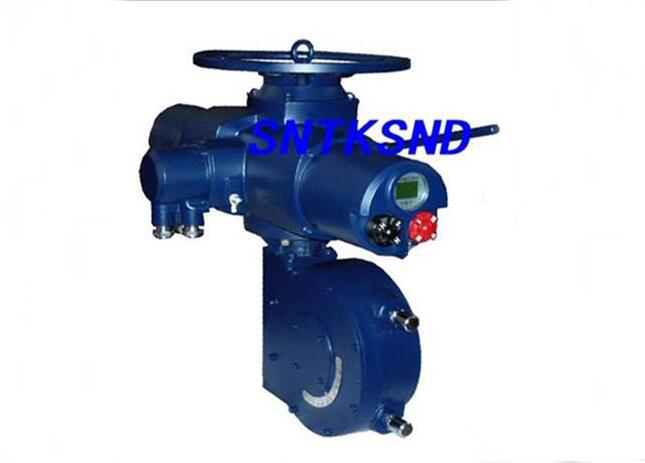

SND-DQ high-torque quarter-turn combination

SND-DQ high-torque quarter-turn combination (image source: SND official website)

SND-ZTZ Series: High-Torque Multi-Turn

Stacked high-torque multi-turn sizes: SND-ZTZ4000 / ZTZ6300 / ZTZ10000 / ZTZ16000 / ZTZ25000 / ZTZ40000 / ZTZ50000 / ZTZ60000 / ZTZ80000 / ZTZ100000.

STZ Series: Intelligent (listed under the compact group)

Sizes such as STZ4000-0.65/30, STZ6300-0.65/60, STZ10000-0.8/50, STZ12000-0.8/100, STZ16000-0.8/50 and STZ20000-0.8/100 (number codes for torque/thrust and speed/stroke time; see factory data for selection).

SND-Z Technical Data (official)

Item	Value
Supply	380V±10%, 50Hz±10%; optional 380~660V, 50/60Hz (state when ordering)
Ambient temperature	-20~+60℃ (optional -40~+70℃)
Relative humidity	≤90% (25℃)
Protection	IP68 (7m underwater for 72 hours)
Explosion-proof marking	ExdⅠ, ExdibⅡBT4, ExdibⅡCT4 (zone 1/2, class ⅡB~ⅡC, T1~T4)
Duty	S5 (intermittent with electric braking), duty factor ≥25%, up to 1200 starts/hour
Signals	Modulating: 4~20mA DC input; 4~20mA DC output
Dead band	0.5~9% adjustable

Features

Non-intrusive design; precise, reliable travel and torque measurement; Chinese/English interface; control-state lock
Dual-speed (variable-speed slow closing) enabling fast valve closure requirements
Comprehensive data logging, self-diagnosis with adaptation, in-service fault diagnosis
Motor over-temperature and instantaneous-reversal protection
Bluetooth configuration; long-range wireless cloud control (special supply)
Fieldbus control (special supply): MODBUS, PROFIBUS-DP, HART; intelligent temperature control (special supply)
Both standard and explosion-proof series
