The SCE300 is an intelligent quarter-turn electric actuator from the Bettis family of actuators. Compact and lightweight, this all-in-one actuator fits all the features of larger, heavier actuators into a neat, innovative design. Deploy the SCE300 to maintain effective control of low-torque, quarter-turn valves and dampers in even the largest and most complex plants.

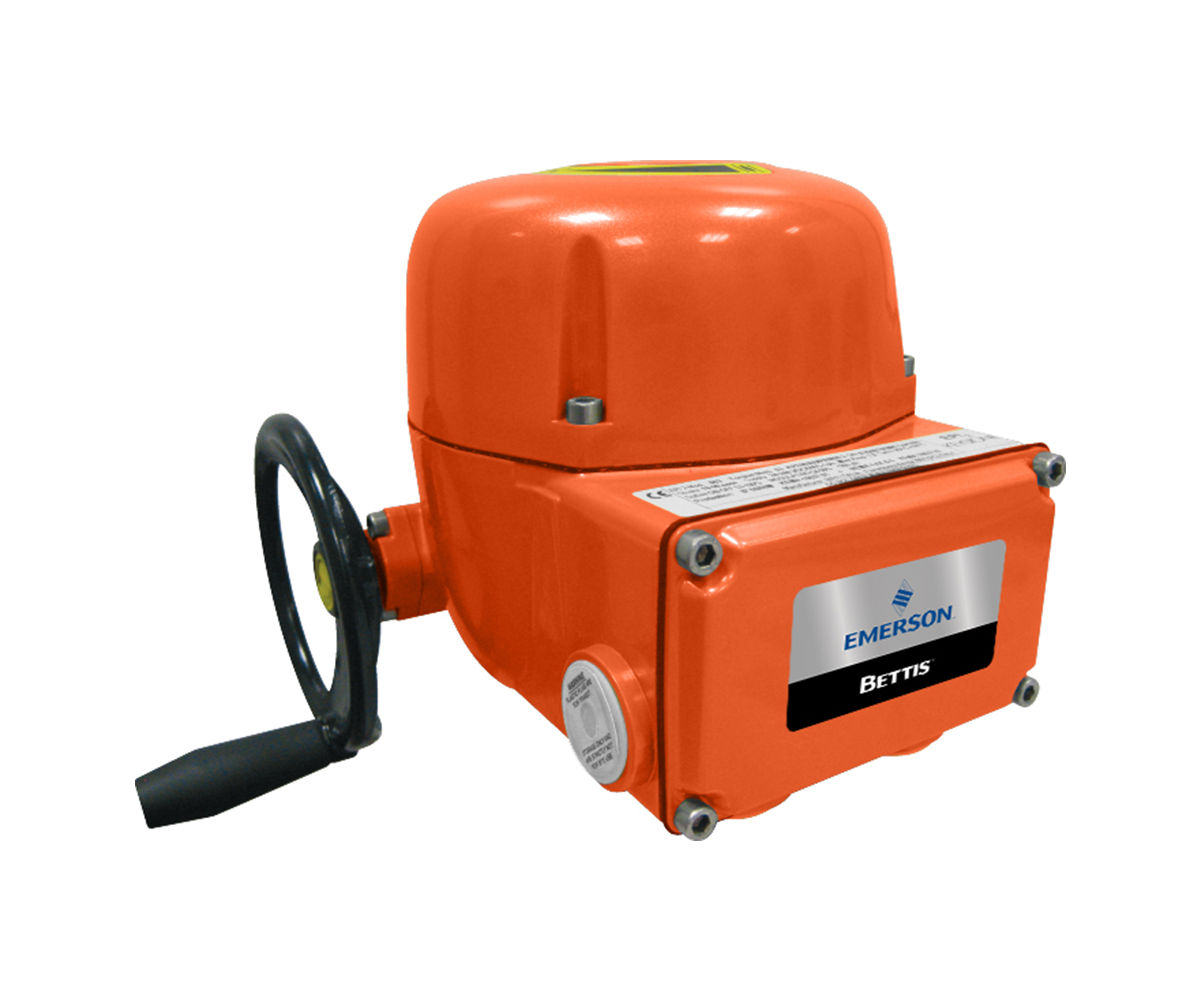

Bettis SCE300 intelligent quarter-turn electric actuator
Key Features
- Separate terminal enclosure is kept isolated from the electronics and motor compartment; only the wiring terminal is exposed during field installation
- Standard adjustable torque switches, from 50 to 100% of rated torque output (3 steps: 50% - 75% - 100%)
- Manual override is always engaged
- Anodized aluminum with epoxy powder coat to protect unit against the decaying effects of aggressive environments
- Visual mechanical position indicator for accurate visual reference of valve position
- Directly mountable or readily adaptable to other quarter-turn valves
- Permanently-lubricated, self-locking gear train helps eliminate the need for motor brakes; Epicyclical gearing ensures reliable and smooth operation
- Mechanical travel stops designed to prevent over-travel during hand wheel or motor operation
- Over-temperature motor thermostat
- Integral speed control, independently adjustable in opening and closing directions
- Latched-type output contacts for fully open / fully closed remote indication. Output contacts for monitor and blinker/local selector indication are also available
- Optional modules add even more functionality and intelligence:
- OM1 – Modulating Input/Output module
- OM3 – Local Interface module
- OM9 – PROFIBUS DP V0/V1 bus communication
- OM11 – DeviceNet bus communication
- OM13 – 3-wire module
