Bettis XTE3000 Intelligent Multi-Turn Electric Actuator

source： date：2026-09-27

The XTE3000 is an intelligent multi-turn electric actuator from the Bettis family of actuators. Specifically designed to meet the most challenging valve automation demands of the Oil & Gas, Power, and Process industries, the XTE3000 is compliant with a wide range of international standards and is the ideal solution to your plant's safety and reliability requirements.

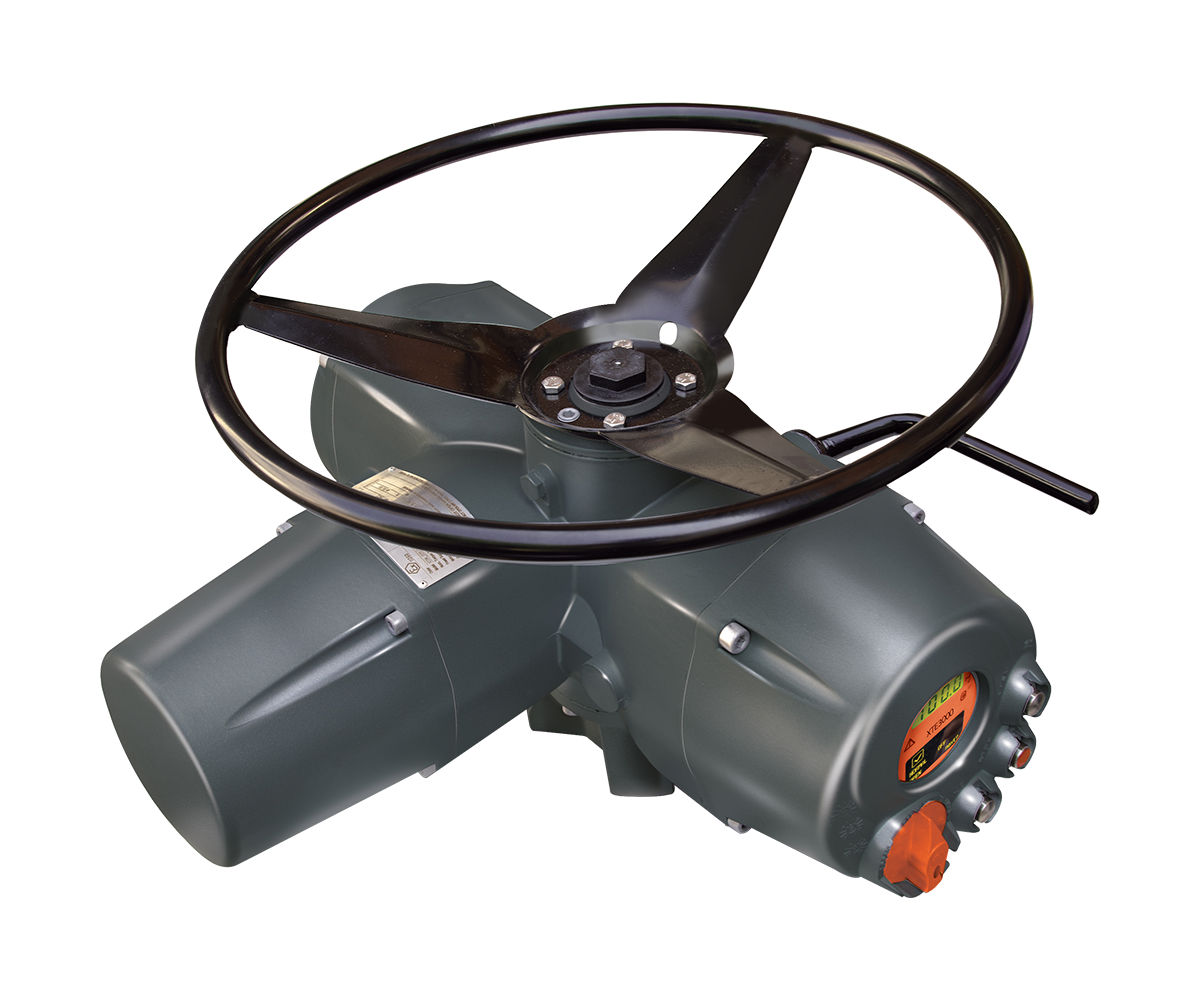

Bettis XTE3000 intelligent multi-turn electric actuator

Key Features

Non-intrusive with a user-friendly push-button panel for operation, configuration, and diagnostics
Bluetooth® wireless connectivity
Maintenance data includes full internal datalogger records, operating data, alarms, valve torque curves, and provides important information on the performance and operating condition of valves and systems
Configurable datalogger function for maintenance and diagnostic programs
Customized numeric and graphic displays with multiple language options
High-definition absolute encoder, able to read valve position even when main and backup power is lost
Contactless digital motor speed sensor
Wide range of advanced open-bus communication protocols: Modbus®, HART®, PROFIBUS DPV0, DPV1, and redundant DPV2, FOUNDATION™ Fieldbus, LonWorks®
The Bettis XTE3000 Modbus card is fully compatible with the Emerson Actuator Master Station, allowing for operation of actuators in the field through the same interface

Main Specifications

Item	Value
Output torque (multi-turn base)	30~1,440 Nm, up to 173 rpm
Power supply	24 VDC up to three-phase 690 VAC
Ambient temperature	-60℃~+85℃ (anti-low-temperature heater standard)
Functional safety	SIL 2 (single actuator) / SIL 3 (dual with redundancy)
Position detection	Absolute encoder — position available even on power/battery loss
Setup & communication	Non-intrusive setting, OLED display, Bluetooth (local) / DCMlink (remote), multilingual interface
Fieldbus	FOUNDATION Fieldbus, HART, Modbus, LonWorks, PROFIBUS DPV0/DPV1/redundant DPV2
Gearbox options	Quarter-turn worm boxes 330~63,000 Nm; multi-turn spur reducers 1,750~57,000 Nm; lever-type quarter-turn 15,000~1,000,000 Nm

Brochure download: Bettis XTE3000 Chinese brochure (PDF)

The XTE3000 was created by combining the Bettis brand with BIFFI's expertise and is manufactured in Houston, Texas. See also our article on how BIFFI was consolidated into the Bettis brand after Emerson's acquisition.
